Description
Technical Description

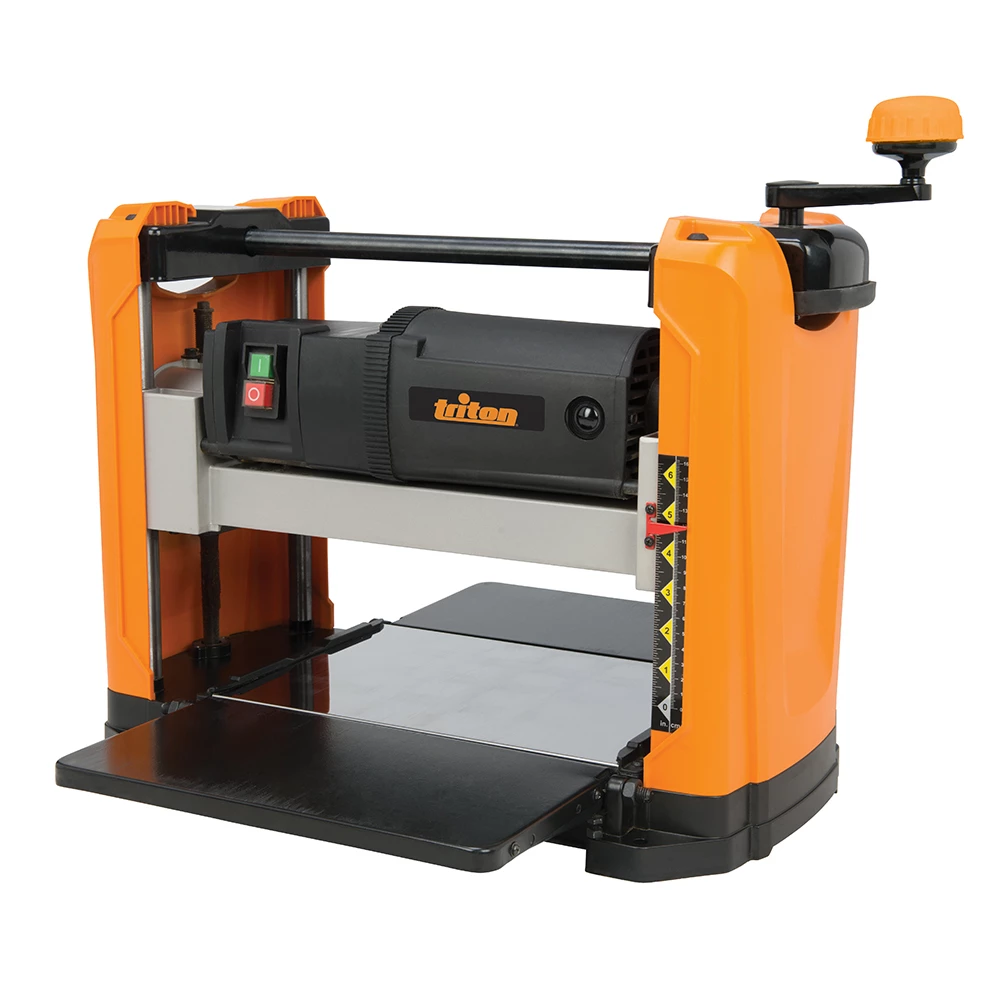

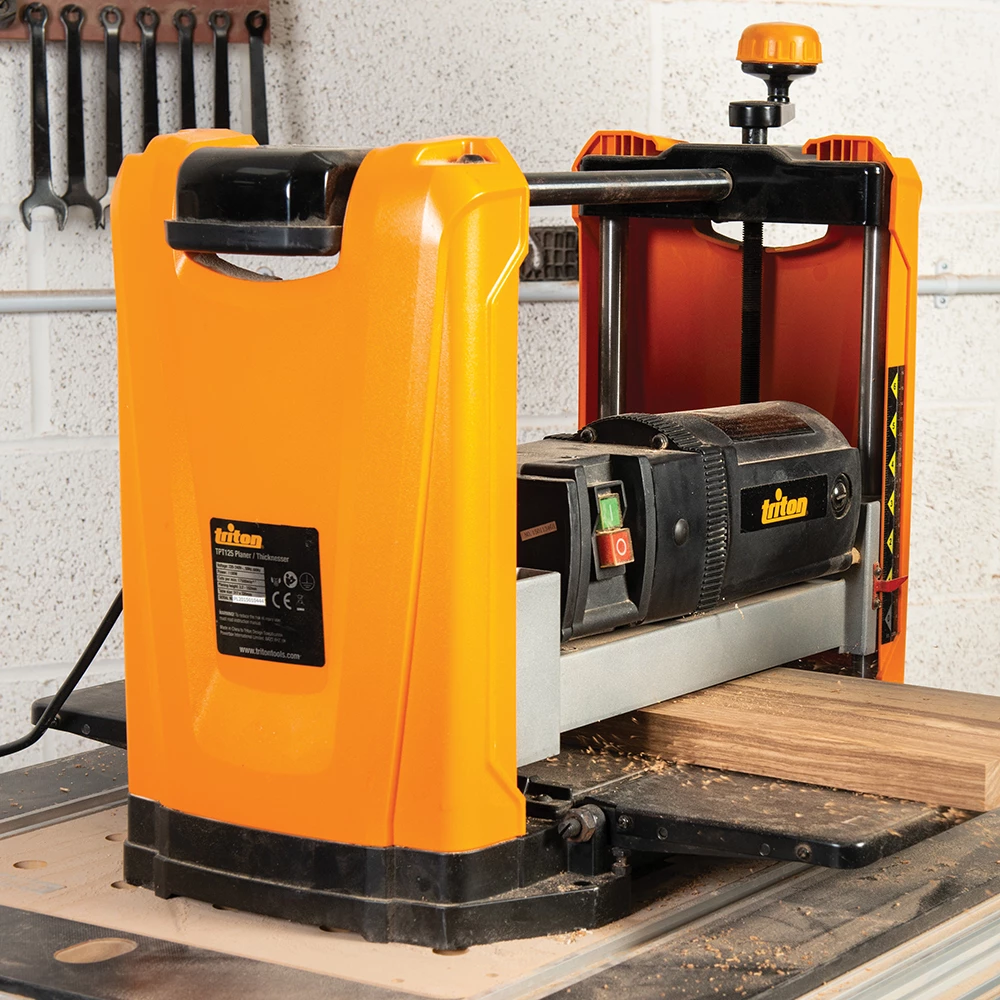

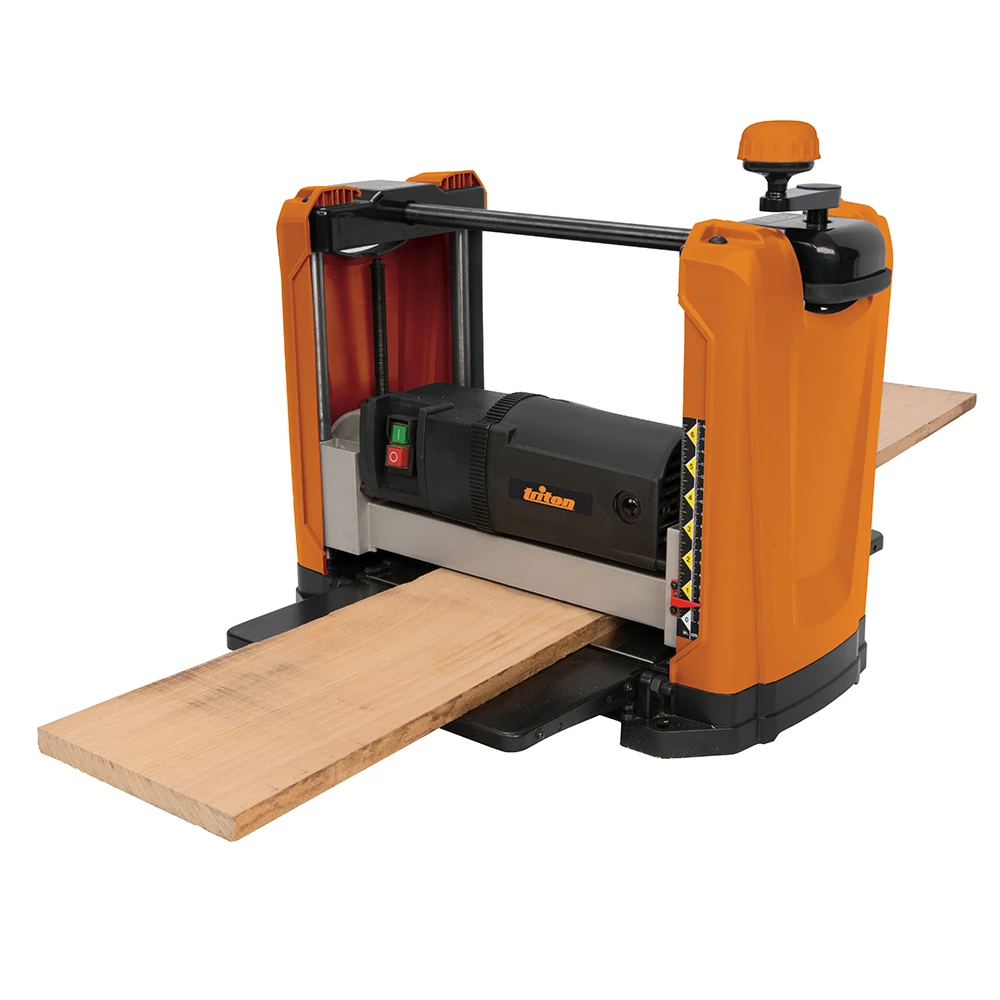

High performance thicknesser with 317mm cutting width. 17,500 cuts per minute. 4-post column design enables easy, accurate setting of depth of cut in 1.6mm increments. Cutter height: 3.2-152mm. Large infeed and outfeed tables for added material support. Circuit breaker for electrical safety. Dust chute for efficient dust extraction.
Product Features
Easy, accurate setting of cutting depth in 1.58mm increments
Cutter height: 3.2 - 152mm for maximum versatility
4-post column design for rigidity and accuracy in setting depth of cut
Large infeed and outfeed tables provides support for longer workpieces
Circuit breaker for electrical safety
Dust extraction chute extracts left or right for a cleaner and safer working environment
Locating holes for secure bench mounting
Crank handle for easy movement of the roller case
Quick access brushes allows changing of worn brushes
High performance thicknesser with 317mm cutting width. 17,500 cuts per minute. 4-post column design enables easy, accurate setting of depth of cut in 1.6mm increments. Cutter height: 3.2-152mm. Large infeed and outfeed tables for added material support. Circuit breaker for electrical safety. Dust chute for efficient dust extraction.
Product Features
Easy, accurate setting of cutting depth in 1.58mm increments
Cutter height: 3.2 - 152mm for maximum versatility
4-post column design for rigidity and accuracy in setting depth of cut
Large infeed and outfeed tables provides support for longer workpieces
Circuit breaker for electrical safety
Dust extraction chute extracts left or right for a cleaner and safer working environment
Locating holes for secure bench mounting
Crank handle for easy movement of the roller case
Quick access brushes allows changing of worn brushes
Additional Product Data
Power
1100W
Cutting Speed
17,500cpm
Planing Width x Height
317 x 152mm
Table Size
317 x 597mm
Feed speed
8.53m/min
Max Cutting Depth
2.4mm
Dust Port Dimensions
Inner 48mm, outer 53mm
What's in the Box
1 x TPT125 1100W Thicknesser 317mm
1 x Crank Handle
1 x Dust Chute
1 x Hex Key
1 x Instruction Manual
