Description
Technical Description
Powerful 1100W surface planer for smooth planing of wood and plastic surfaces. Large 152mm planing width with 771 x 250mm table surface. Dual-bladed cutting block removes material at 16,000cpm with a maximum depth of cut in a single pass at 3.2mm. Extruded aluminium fence tilts 45 - 135° with preset stops. Includes guide fence, blade drum guard, push stick, 2 x push blocks, hex spanner and 2 x hex keys.
Product Features
Easy, accurate setting of cutting depth to a maximum pass of 3.2mm
Bench mounting holes allow the base to be securely fixed in a workshop
Dust extraction port connects to external dust extractors for a safer and cleaner work environment
Large infeed and outfeed tables provide support for longer workpieces
Circuit breaker for electrical safety
Dual blade cutting block for fast material removal and finer finish for jointing
Extruded aluminium fence tilts 45 - 135° for versatile and accurate planing
Push stick and push blocks promote safer working with more control over workpiece
Blade guard drum reduces chance of kickback
Power
1100W
No Load Speed
8000min-1
Max Planing Depth
3.2mm
Max Planing Width
152mm
Table Size
771 x 250mm
Dust Port Dimensions
Inner 50mm, outer 60mm
What's in the Box

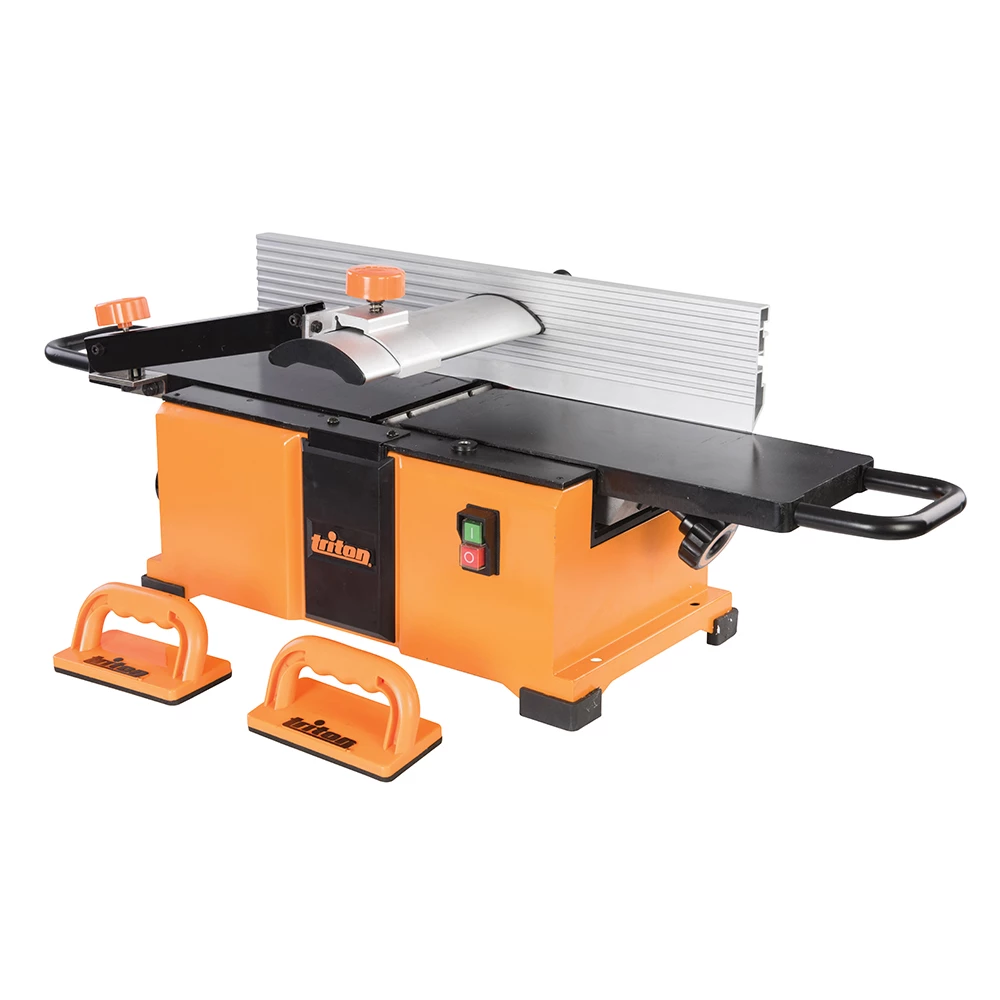

1 x TSPL152 1100W Surface Planer 152mm
2 x Handles
1 x Blade Guard
1 x Blade Guard Arm
2 x Push Blocks

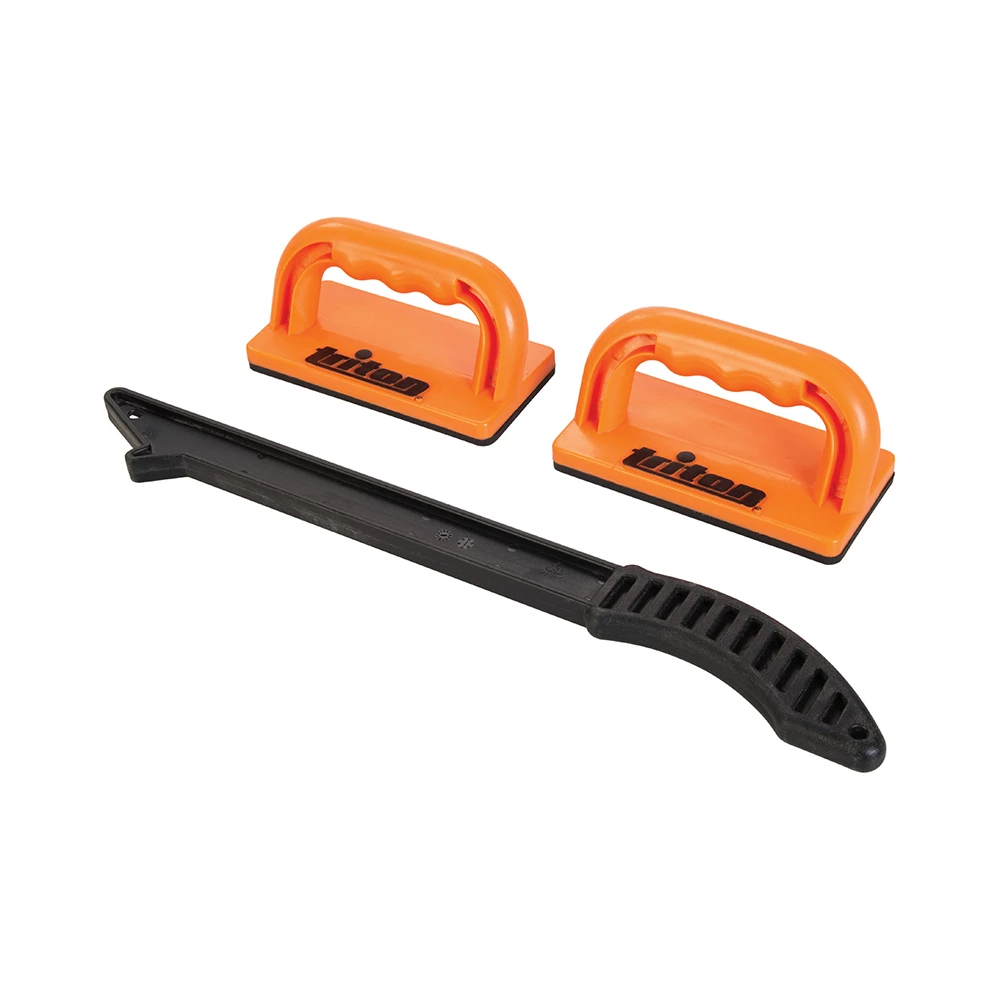

1 x Push Stick
1 x Guide Fence
1 x Guide Fence Attachment Kit
1 x Double End Wrench (10mm & 12mm)
1 x Hex Spanner
1 x Instruction Manual
