Description
Technical Description

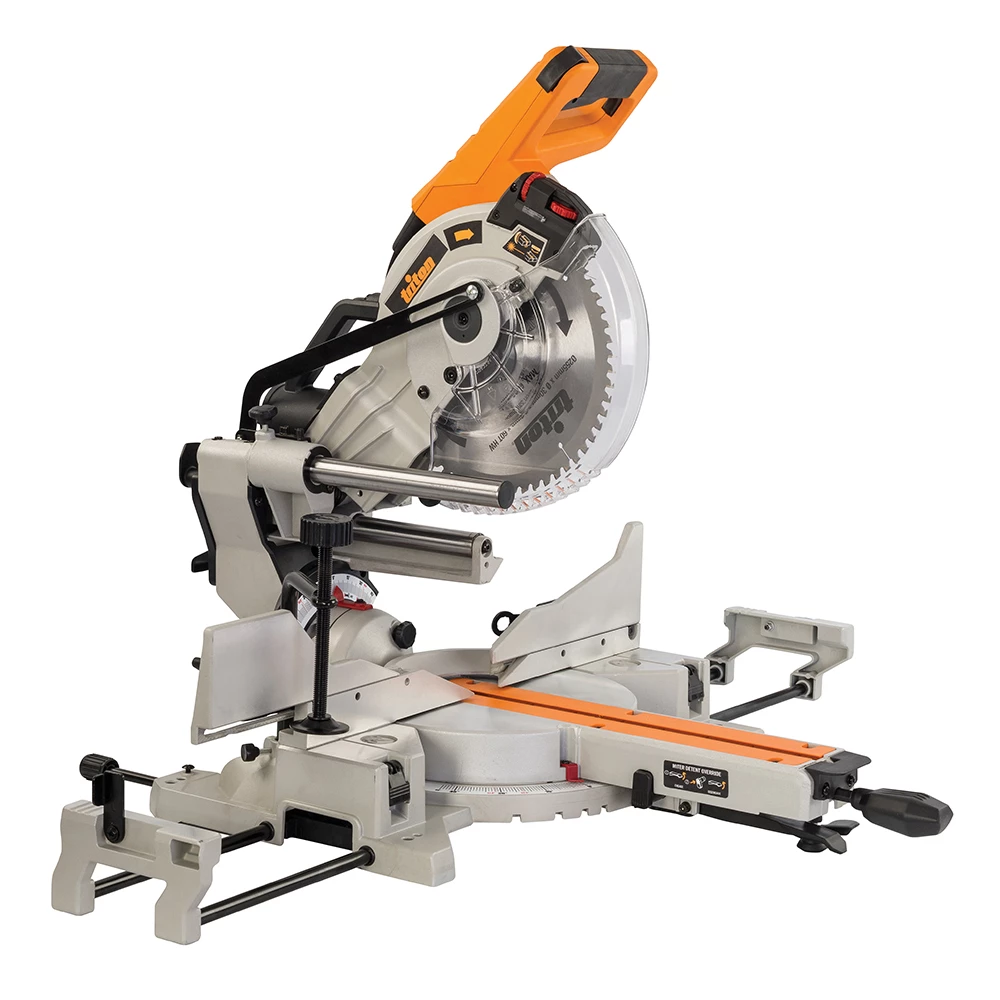

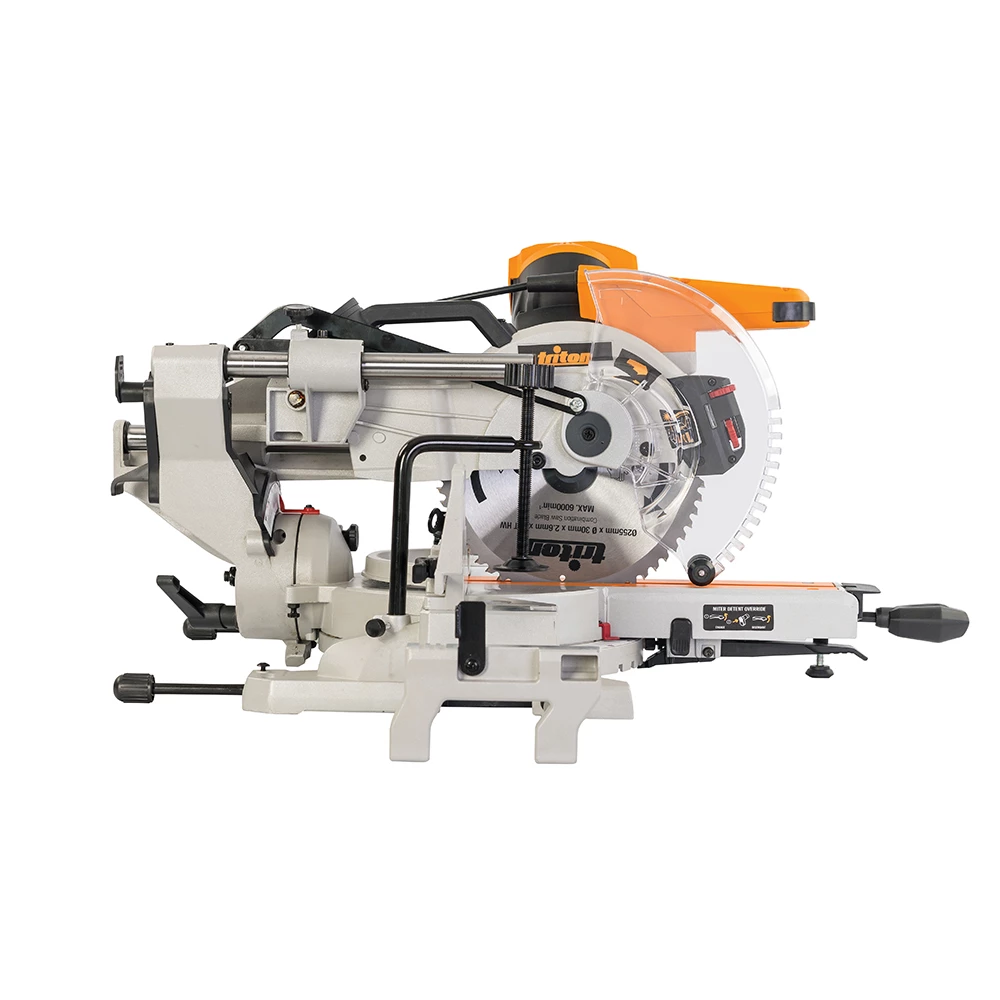

Powerful 1800W motor and precision clean cutting 254mm 60T HW blade. Smooth dual bar, fixed or sliding cutting head. Laser cut line indicator. Compound, 0-45° L/R bevel and 0-50° L/R mitre cuts. Maximum cross cut capacity 64 x 318mm. Extended blade channel with mitre controls. Tool-free trench cut depth adjuster. Double bevel design for angled cuts left up to 47°, and right up to 45°. Cuts natural and composite wood plus plastics. Tool-free side supports with stops, upper fence adjustment, and workpiece clamp. Includes clamp, dust bag, hex key, upper fence, and blade.
Product Features
Dual bar sliding system glides the blade smoothly into the cut
Double bevel, wide mitre range and 2-stage slide bars for superior breadth of cut types on large workpieces
High performance 60T blade for precision cuts at all angles

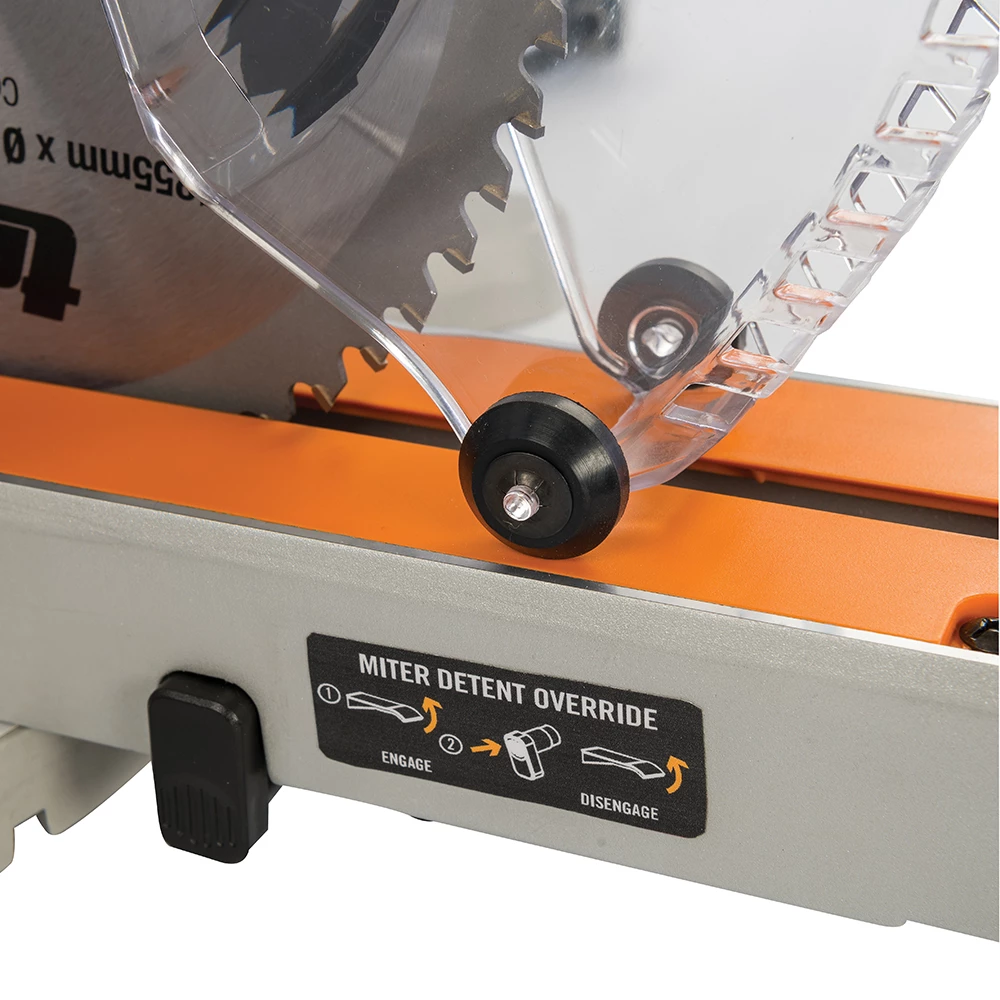

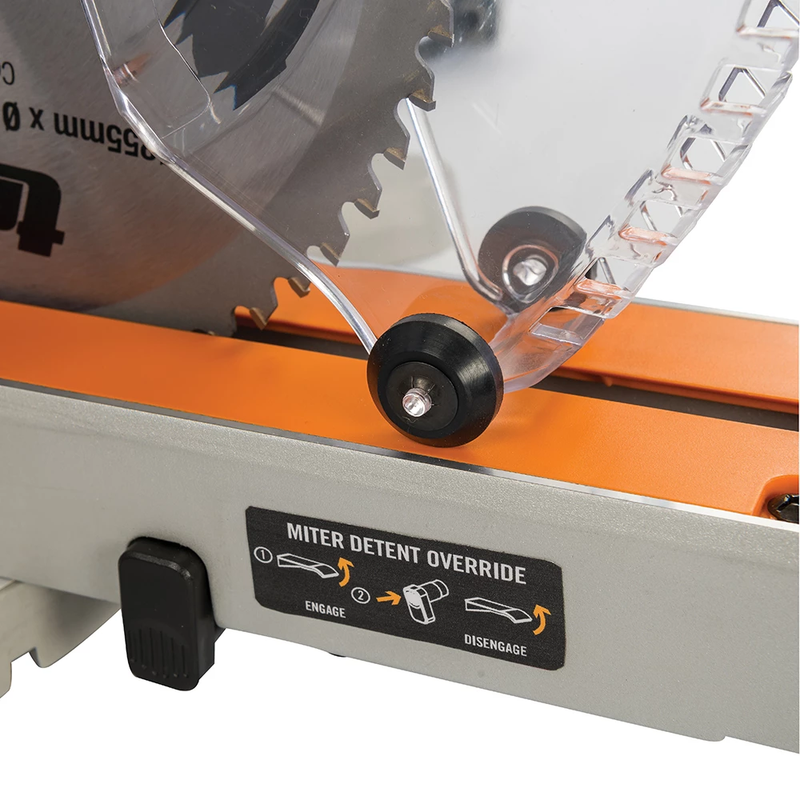

Mitre presets and detent override with micro-adjuster for convenient common angles and custom precision when needed
Adjustable upper fence slides above regular fence to support larger workpieces
Easy-to-adjust workpiece clamp for improved safety and security
Adjustable sliding side supports with stops to stabilise longer workpieces

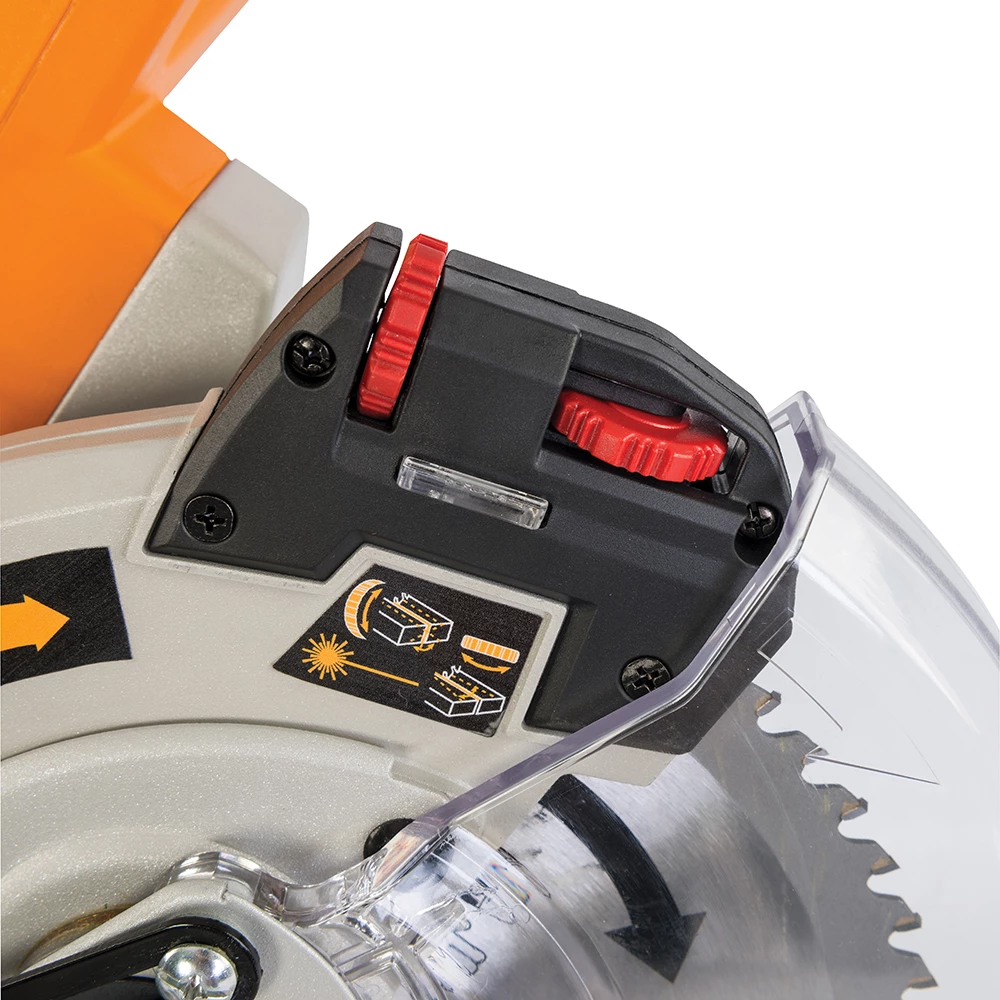

Adjustable laser guide with two-way calibration for accurate and precise cuts

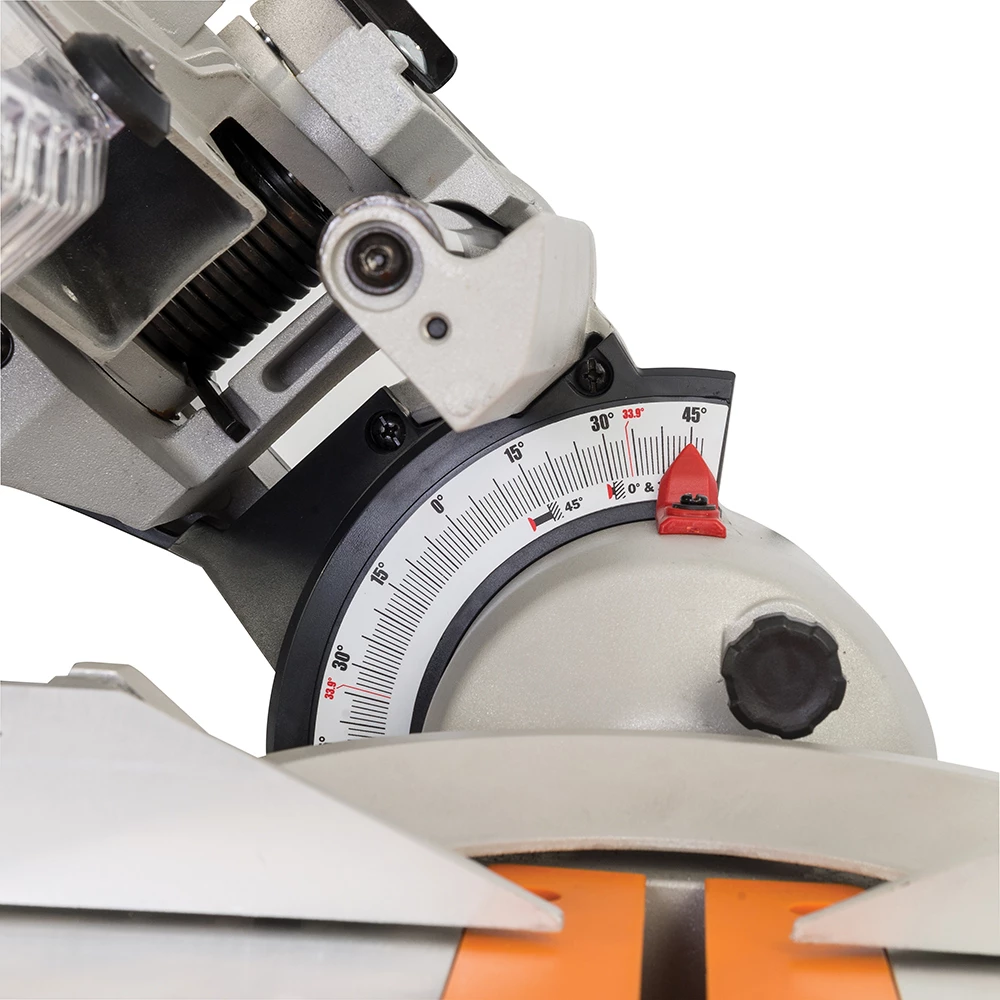

33.9° bevel pre-set for creating crown mouldings
Powerful 1800W motor and precision clean cutting 254mm 60T HW blade. Smooth dual bar, fixed or sliding cutting head. Laser cut line indicator. Compound, 0-45° L/R bevel and 0-50° L/R mitre cuts. Maximum cross cut capacity 64 x 318mm. Extended blade channel with mitre controls. Tool-free trench cut depth adjuster. Double bevel design for angled cuts left up to 47°, and right up to 45°. Cuts natural and composite wood plus plastics. Tool-free side supports with stops, upper fence adjustment, and workpiece clamp. Includes clamp, dust bag, hex key, upper fence, and blade.
Product Features
Dual bar sliding system glides the blade smoothly into the cut
Double bevel, wide mitre range and 2-stage slide bars for superior breadth of cut types on large workpieces
High performance 60T blade for precision cuts at all angles
Mitre presets and detent override with micro-adjuster for convenient common angles and custom precision when needed
Adjustable upper fence slides above regular fence to support larger workpieces
Easy-to-adjust workpiece clamp for improved safety and security
Adjustable sliding side supports with stops to stabilise longer workpieces
Adjustable laser guide with two-way calibration for accurate and precise cuts
33.9° bevel pre-set for creating crown mouldings
Additional Product Data
Power
1800W
No load speed
3200min-1
Cuts
Compound, 0-45° right bevel, 0-47° left bevel & 0-50° L/R mitre
Max Cross Cut Capacity
64 x 318mm
Weight
26kg
Dust port dimensions
Inner - 57.5mm, outer - 64mm
What's in the Box
1 x TCMS254 1800W Compact Sliding Mitre Saw 254mm
1 x TCT Blade 254mm
1 x Upper Fence
1 x Workpiece Clamp
1 x Nut Wrench
1 x Dust Bag
1 x Instruction Manual
