Description
Technical Description

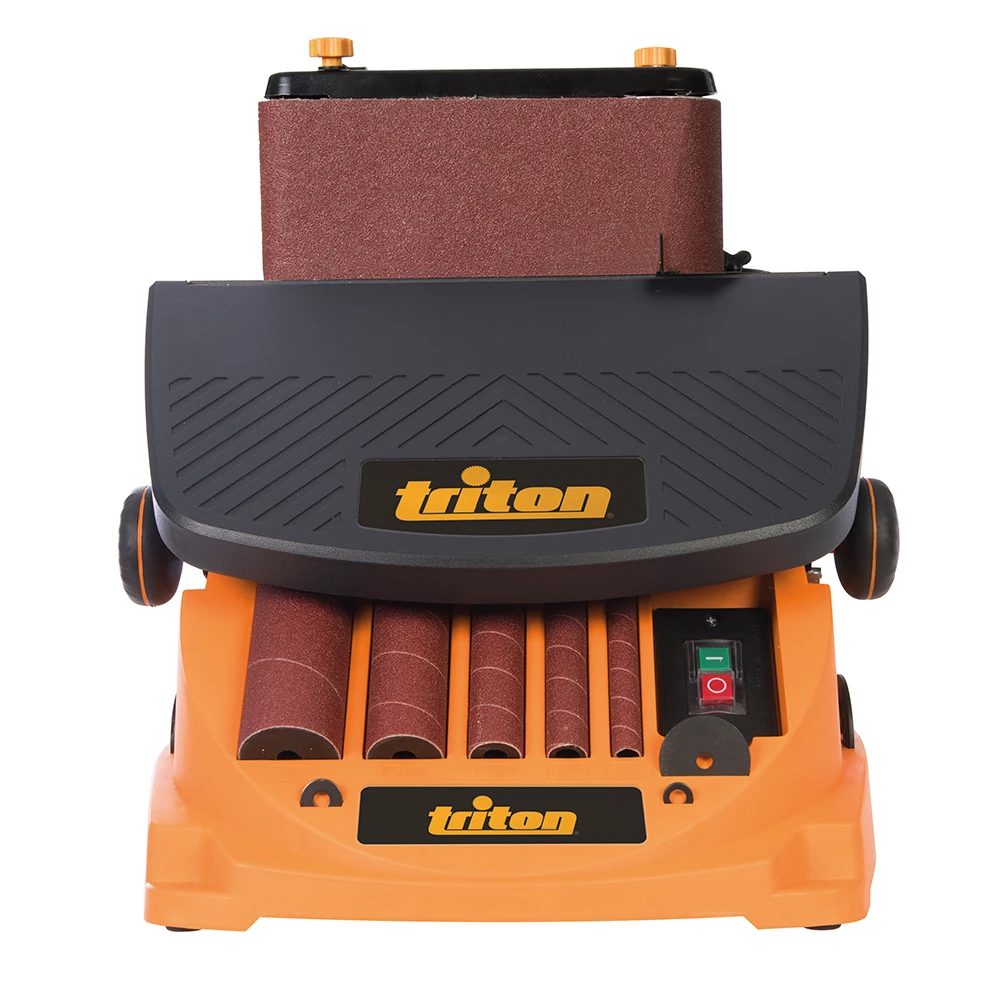

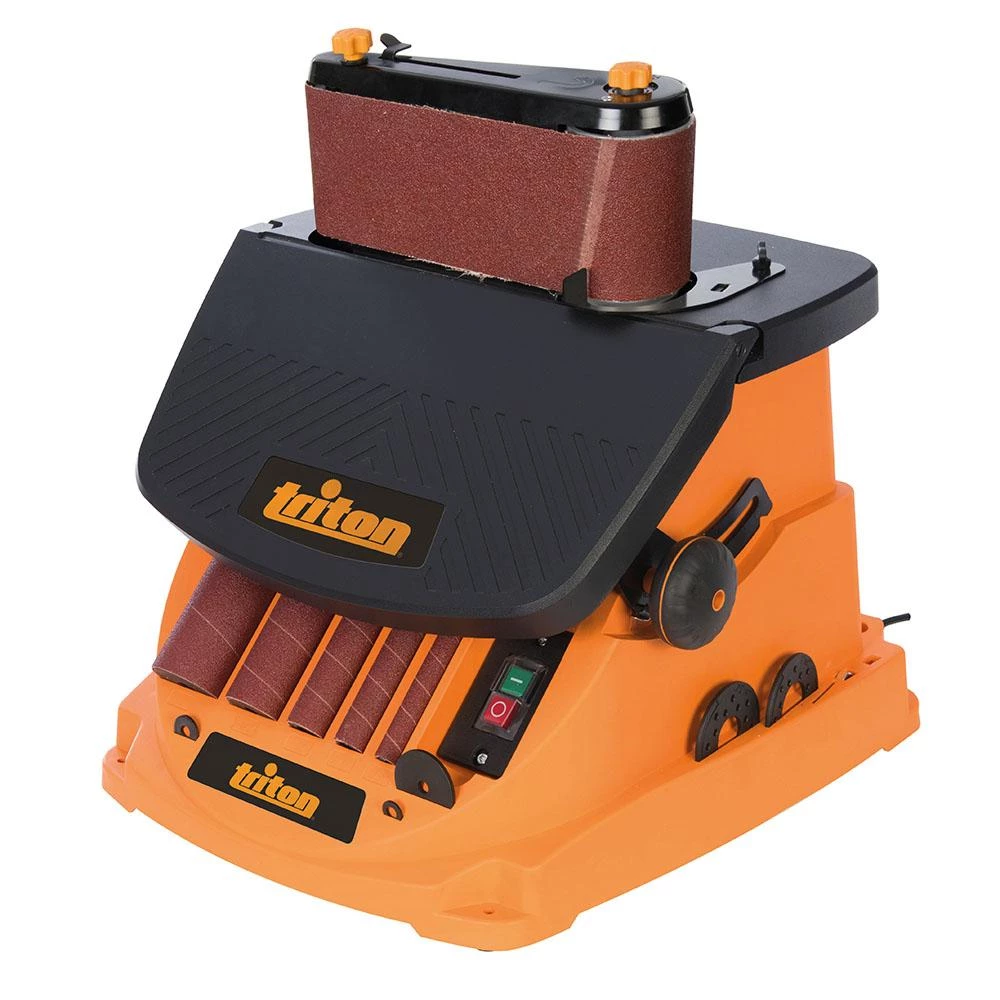

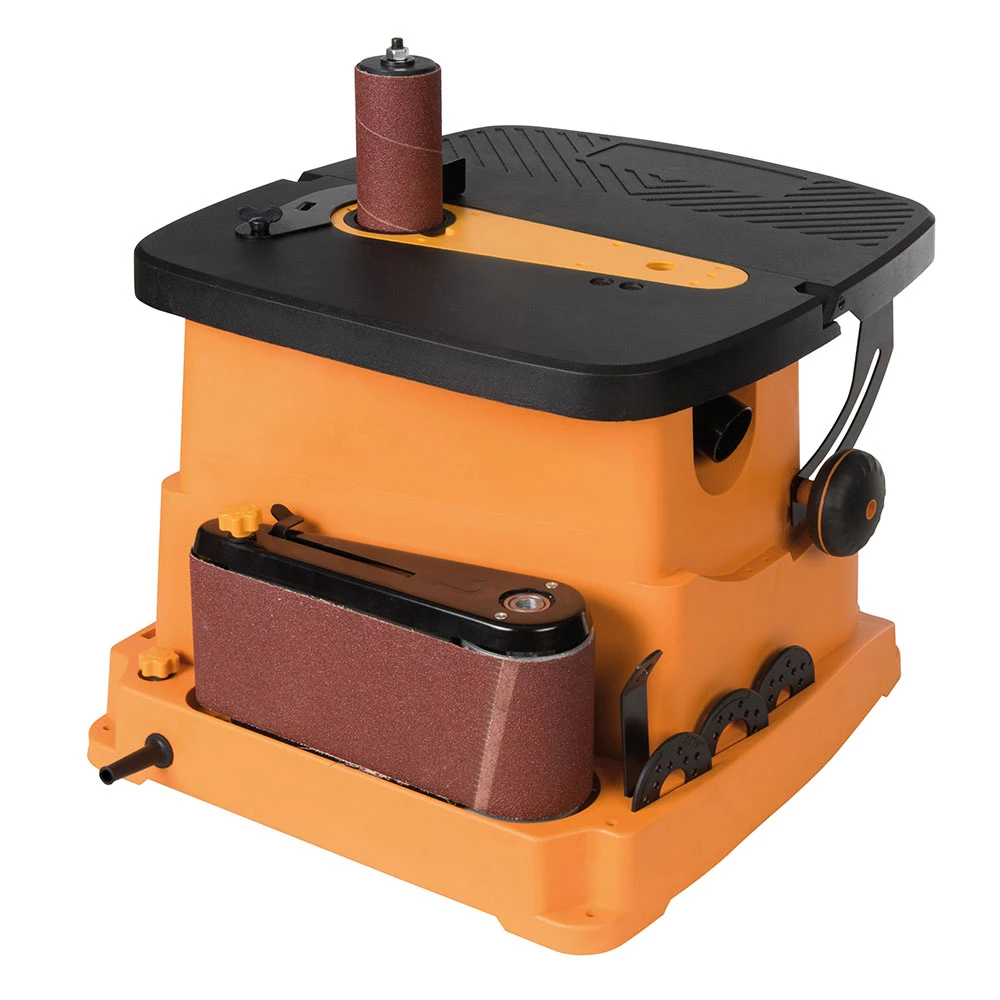

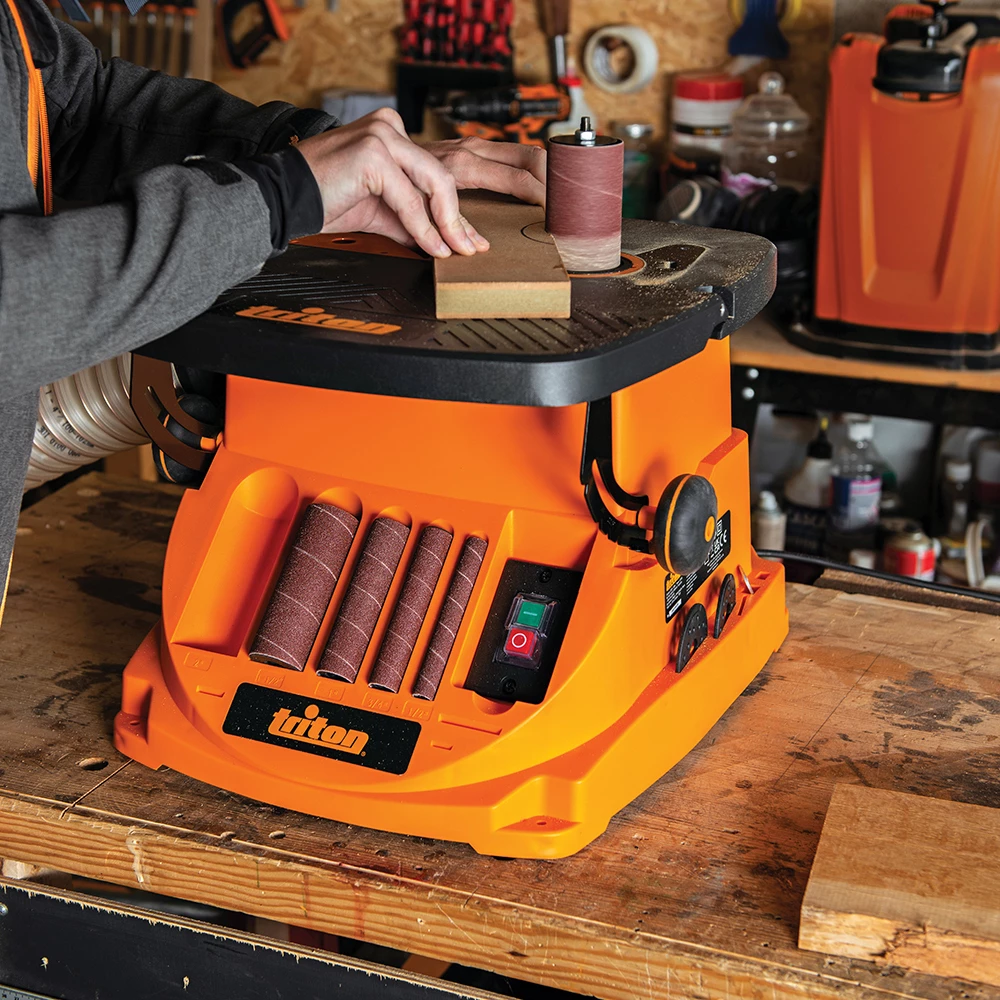

Double configuration with fast, easy changing between spindle sander and belt sander. Dual rotating and vertically oscillating action for fast sanding and improved work rate with reduced chance of burn. 0 - 45° tilting table for easy chamfering and edge work. 5 x sanding sleeves from 13 - 51mm diameter x 114mm length and 100 x 610mm belt sander provide maximum versatility and work rate with both intricate, shaped plus standard workpieces. Powerful 450W motor. On-board storage for all accessories. Vented throat plates and under-table dust extraction channel. Easy bench mounting or freestanding operation. Non-latching safety on/off switch with dust cover. Supplied with belt sander unit, 5 x throat plates, 4 x drum washers, 4 x drums, 5 x sleeves, 100mm dust port adaptor and spindle wrench.
Product Features
Large cast aluminium table with 0-45° tilting front section for flatness, accuracy and strength
Rotating and vertically oscillating sanding action for the perfect balance between work rate and control
5 x sanding sleeves (13 - 51mm dia) and matching drums provide maximum versatility with intricate, shaped workpieces
All metal belt sander unit with easy belt change provides maximum workrate with straight and shaped workpieces
On-board storage slots keeps accessories with the tool for rapid mode changing and convenience
Vented throat plates and under table dust channel for optimised dust and chippings extraction providing a cleaner and safer working environment
Bench-mounting holes for safe and secure installation especially when using larger workpieces
Fast and easy switching between spindle sanding and belt sanding for optimised sanding of any workpiece
Double configuration with fast, easy changing between spindle sander and belt sander. Dual rotating and vertically oscillating action for fast sanding and improved work rate with reduced chance of burn. 0 - 45° tilting table for easy chamfering and edge work. 5 x sanding sleeves from 13 - 51mm diameter x 114mm length and 100 x 610mm belt sander provide maximum versatility and work rate with both intricate, shaped plus standard workpieces. Powerful 450W motor. On-board storage for all accessories. Vented throat plates and under-table dust extraction channel. Easy bench mounting or freestanding operation. Non-latching safety on/off switch with dust cover. Supplied with belt sander unit, 5 x throat plates, 4 x drum washers, 4 x drums, 5 x sleeves, 100mm dust port adaptor and spindle wrench.
Product Features
Large cast aluminium table with 0-45° tilting front section for flatness, accuracy and strength
Rotating and vertically oscillating sanding action for the perfect balance between work rate and control
5 x sanding sleeves (13 - 51mm dia) and matching drums provide maximum versatility with intricate, shaped workpieces
All metal belt sander unit with easy belt change provides maximum workrate with straight and shaped workpieces
On-board storage slots keeps accessories with the tool for rapid mode changing and convenience
Vented throat plates and under table dust channel for optimised dust and chippings extraction providing a cleaner and safer working environment
Bench-mounting holes for safe and secure installation especially when using larger workpieces
Fast and easy switching between spindle sanding and belt sanding for optimised sanding of any workpiece
Additional Product Data
Power
450W
No Load Speed
2000min-1 (spindle) / 480m/min (belt)
Table size
430 x 410mm
Oscillations
58opm x 16mm (5/8") stroke length
Sleeve Sizes
13 - 51mm dia x 114mm length
Belt Size
100 x 610mm
Dust port dimensions
Inner 35mm, Outer 38.5mm
Weight
12.9kg

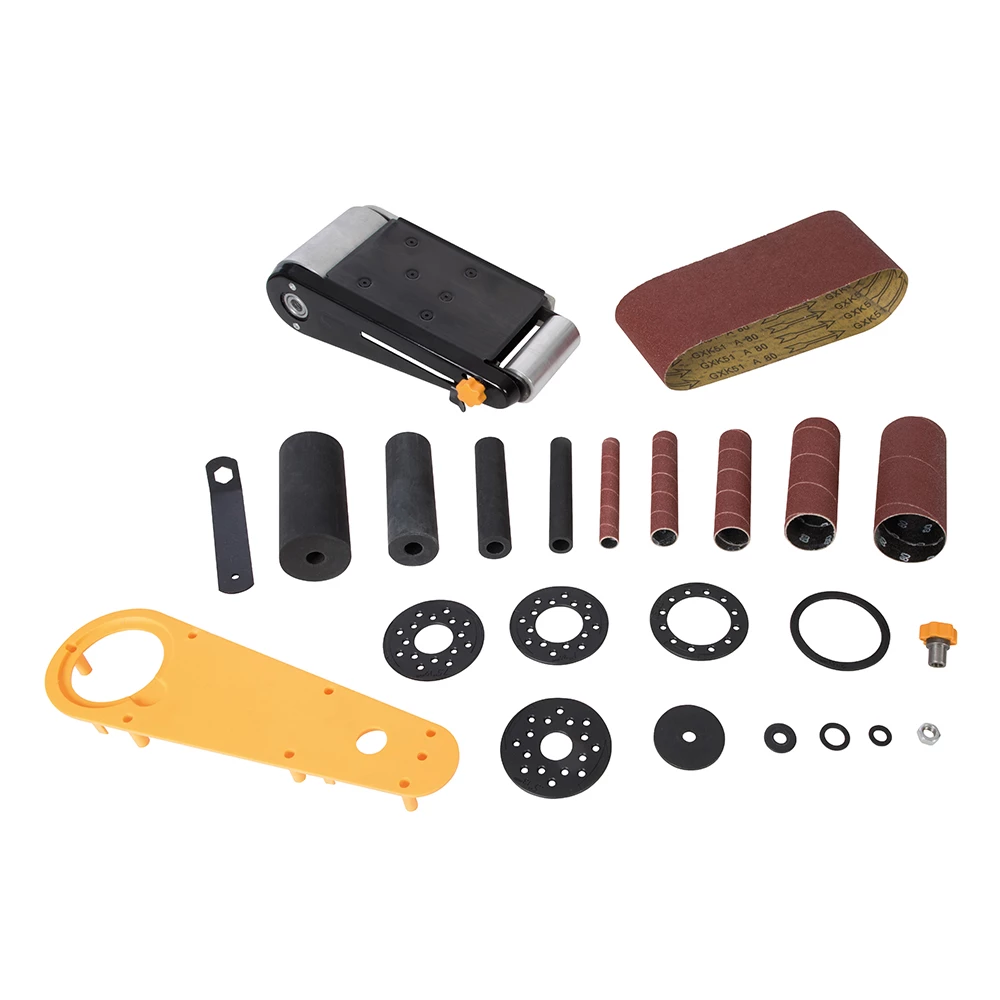

What's in the Box
1 x TSPST450 450W Oscillating Spindle & Belt Sander
1 x Belt Sander Unit
1 x Drive Adaptor
1 x Sanding Belt 80G
5 x Sanding Sleeves 80G
4 x Sanding Drums
5 x Throat Plates
1 x Table Insert
1 x Workpiece Stop
1 x Dust Port Adaptor 100mm (4”)
1 x Spanner 13mm
1 x Minor Parts Pack
1 x Instruction Manual
