Description

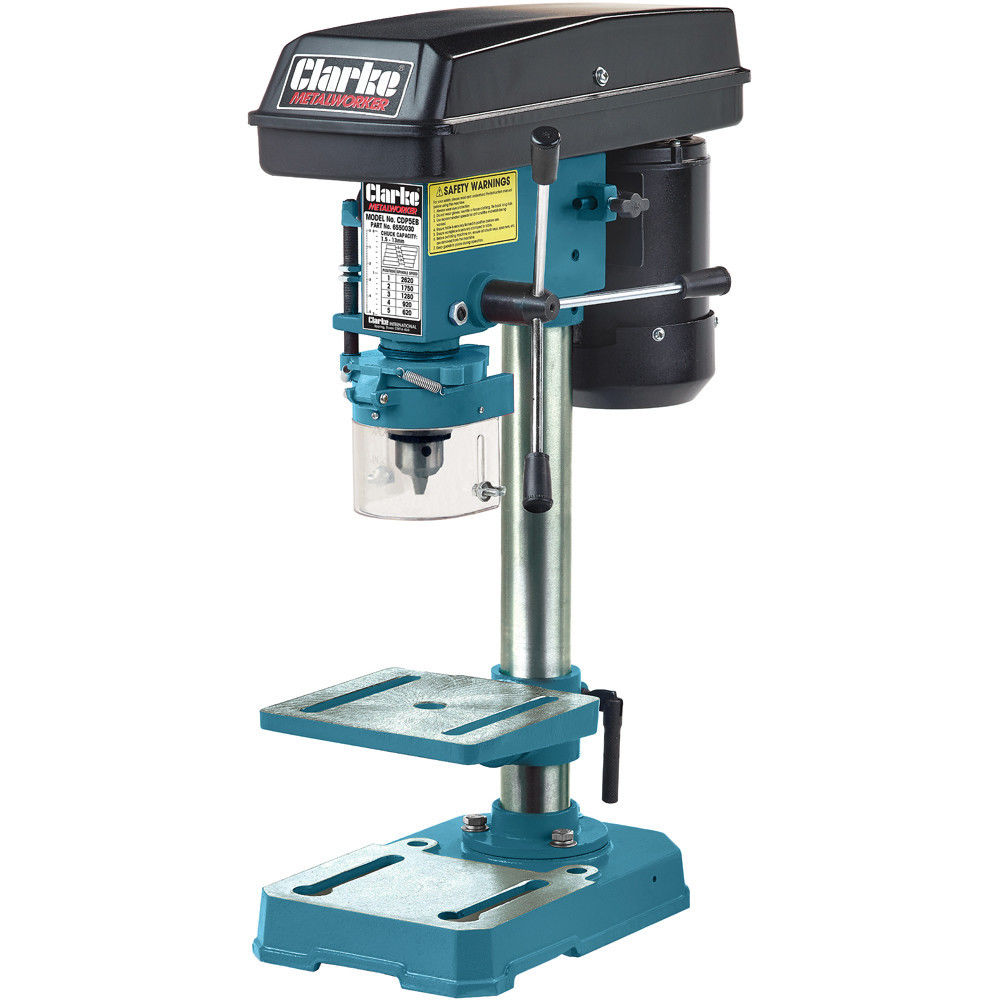

This general purpose, five speed bench drill is ideal for the hobby or DIY user. With a 13mm capacity chuck, compact dimensions and a whole host of other useful features, the CDP5EB is ideally suited for the home workshop. It also has a depth gauge and a height adjustable tilting table with slots to clamp your work piece.
For safety there is a clear perspex chuck guard and a no voltage release switch, so it can’t start unexpectedly should mains power fail. A front mounted reference chart has an accurate depth measurement scale which also shows the 5 available drilling speeds.
The chuck is mounted via a B16 taper.
Chuck capacity 13mm (Spindle taper B16)
5 Speeds from 620 - 2620rpm to suit wood, metal & plastic.
350 Watt, 230V motor
Safety features include electrical cut-out on belt guard, combined NVR/stop start switch & clear perspex chuck guard.
Tilting 160 x 160mm work table and depth gauge.
Dimensions: chuck to column 104mm, chuck to table 167mm - Overall height 586mm.
Weight: 14.7kg
